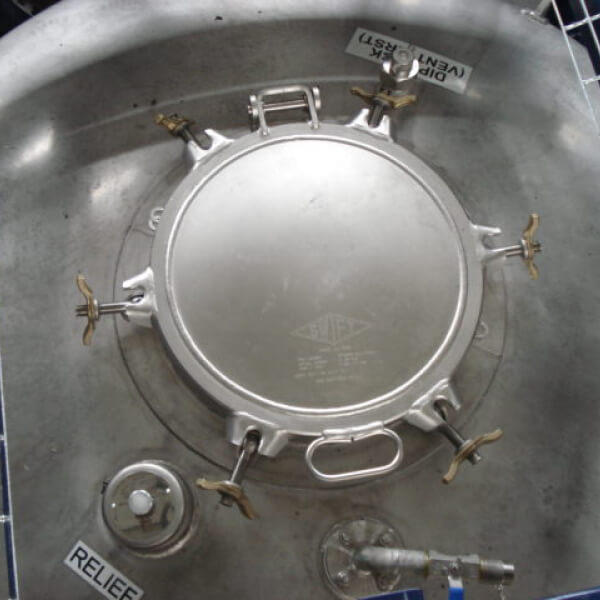

500mm Manlid
The 500mm Manlid assembly consists of a low profile neck ring welded to a compensating ring, with either 6 or 8 point fastening. Lids are electropolished, while neckrings are passivated and pickled for a corrosive-resistant, long- lasting finish.
500mm Manlid
Features & Benefits
- 8 point swing bolt bracketed dome manlid
- Low profile neckring welded to a compensating ring
- Lids are electropolished and neckrings are passivated and pickled
- Also available in 460mm
Production Specifications
| Weight | 36 kg (80 lbs) |
| Design Pressure | 4 BAR (58 PSI) |
| Test Pressure | 6 BAR (87 PSI) |
